ESP32 개발(ESP-IDF) - LED 점멸



MCU	ESP32 DevKit V1(ESP-WROOM-32)
IDE	VSC + ESP-IDF
목표	ESP32 DevKit V1의 LED를 ON-OFF



1. ESP-IDF

View - Command Palette

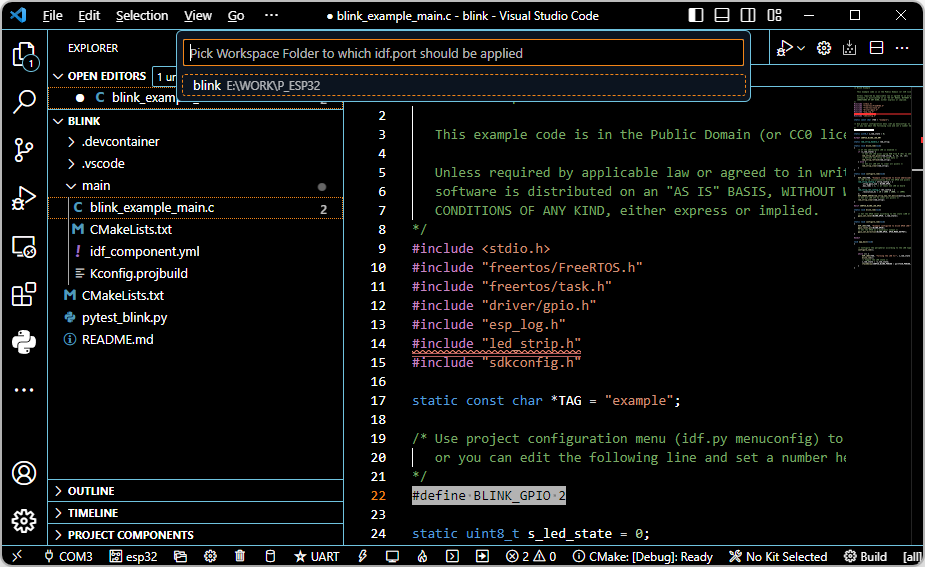

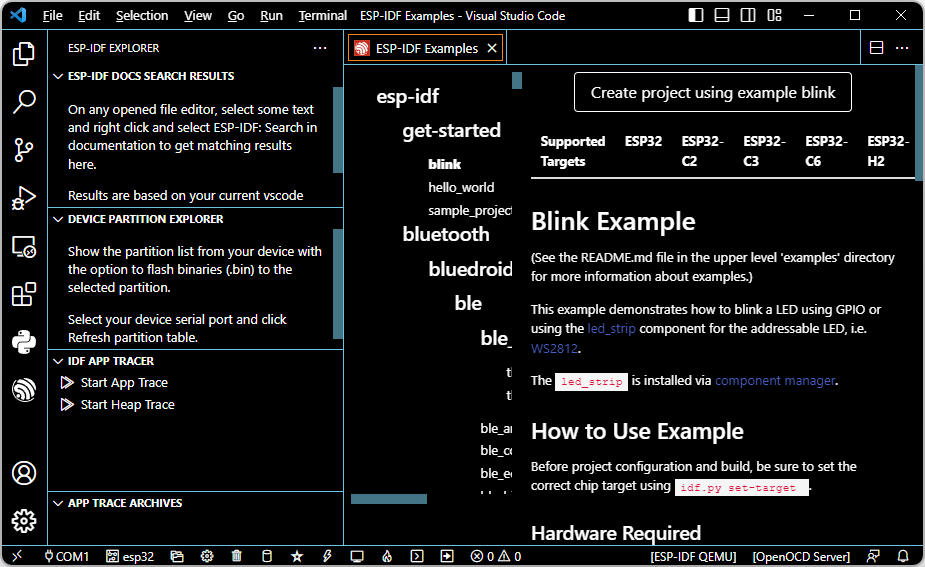

blink - Create project using example blink

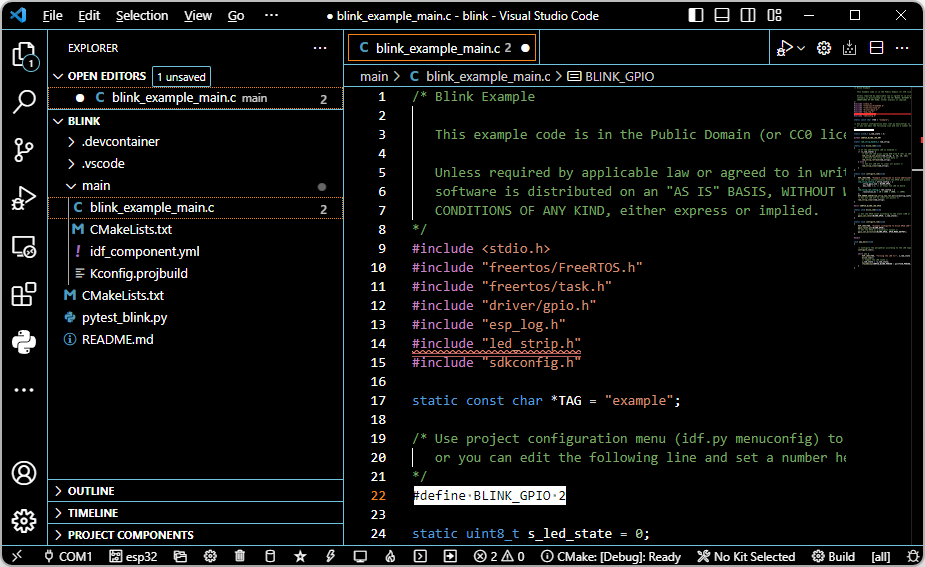

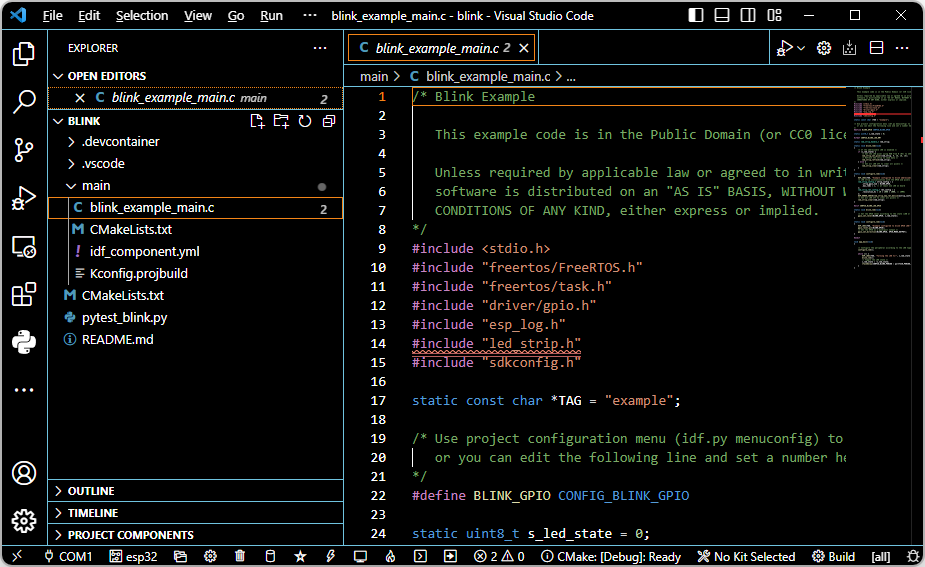

LED GPIO 설정

#define BLINK_GPIO 2

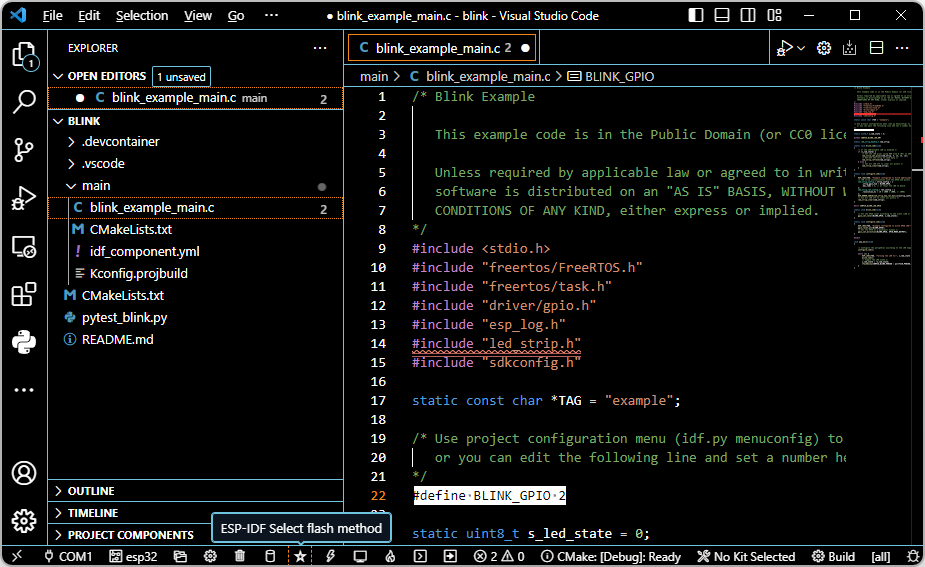

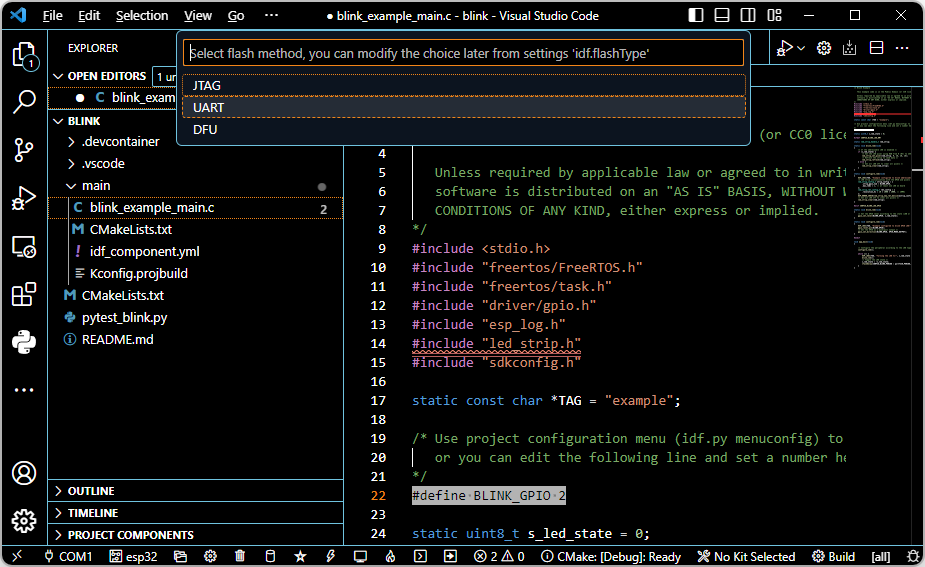

flash method - UART

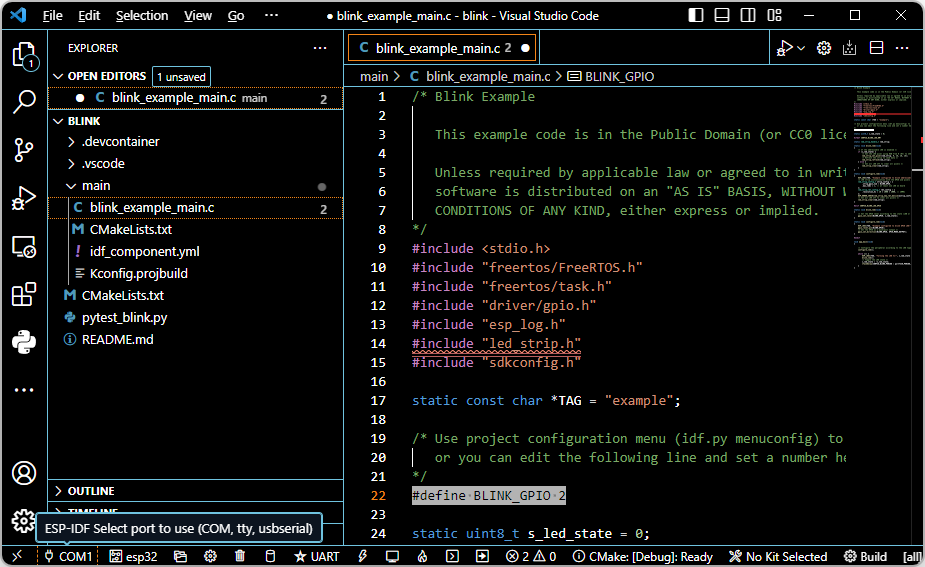

serial port - COM3

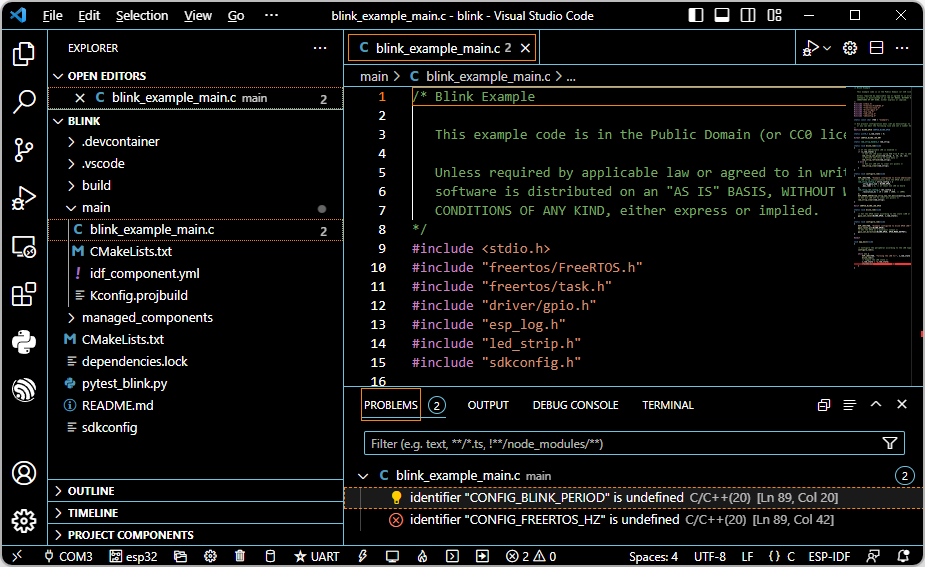

Build - 에러남



다음과 같이 c_cpp_properties.json를 수정

{
    "configurations": [
        {
            "name": "ESP-IDF",
            "compilerPath": "E:\\WORK\\P_ESP32\\.espressif\\tools\\xtensa-esp32-elf\\esp-12.2.0_20230208\\xtensa-esp32-elf\\bin\\xtensa-esp32-elf-gcc.exe",
            "cStandard": "c11",
            "cppStandard": "c++17",
            "includePath": [
                "${config:idf.espIdfPath}/components/**",
                "${config:idf.espIdfPathWin}/components/**",
                "${config:idf.espAdfPath}/components/**",
                "${config:idf.espAdfPathWin}/components/**",
                "${workspaceFolder}/**"
            ],
            "browse": {
                "path": [
                    "${config:idf.espIdfPath}/components",
                    "${config:idf.espIdfPathWin}/components",
                    "${config:idf.espAdfPath}/components/**",
                    "${config:idf.espAdfPathWin}/components/**",
                    "${workspaceFolder}"
                ],
                "limitSymbolsToIncludedHeaders": false
            },
            "configurationProvider": "ms-vscode.cmake-tools",
            "compileCommands": "${workspaceFolder}/build/compile_commands.json"
        }
    ],
    "version": 4
}

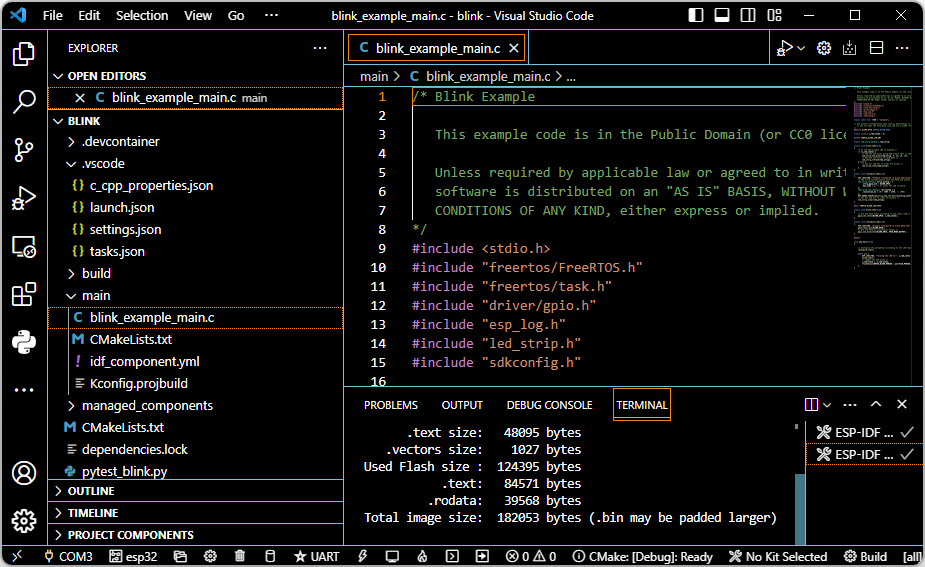

Build - 에러 없어짐

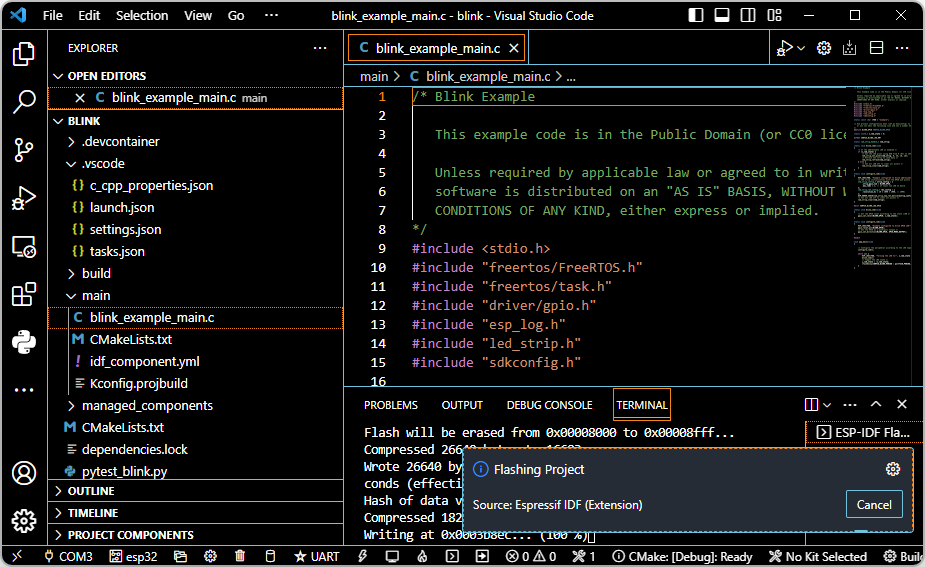

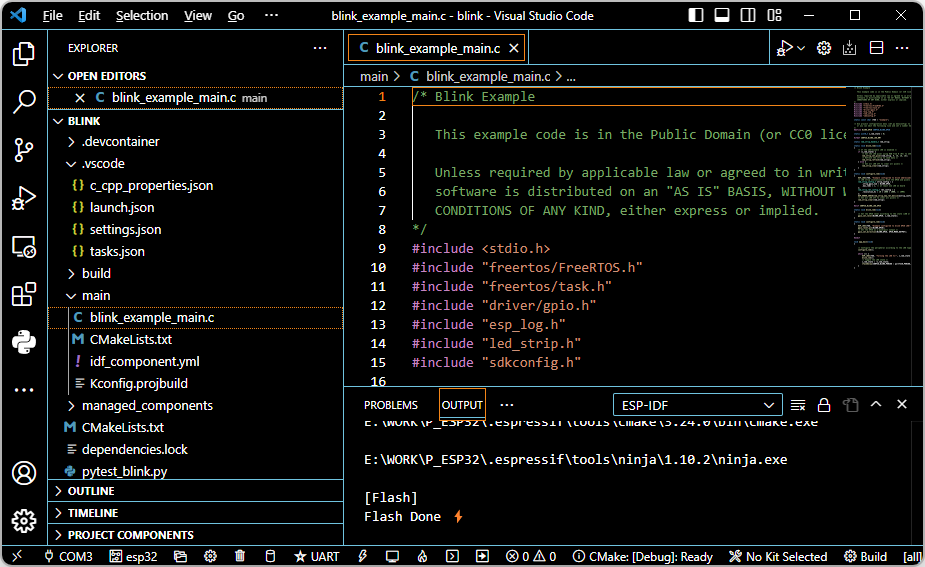

Flash
