• STM32F746NGH6 Arm® Cortex® core-based microcontroller with 1 Mbyte of Flash memory and 340 Kbytes of RAM, in BGA216 package

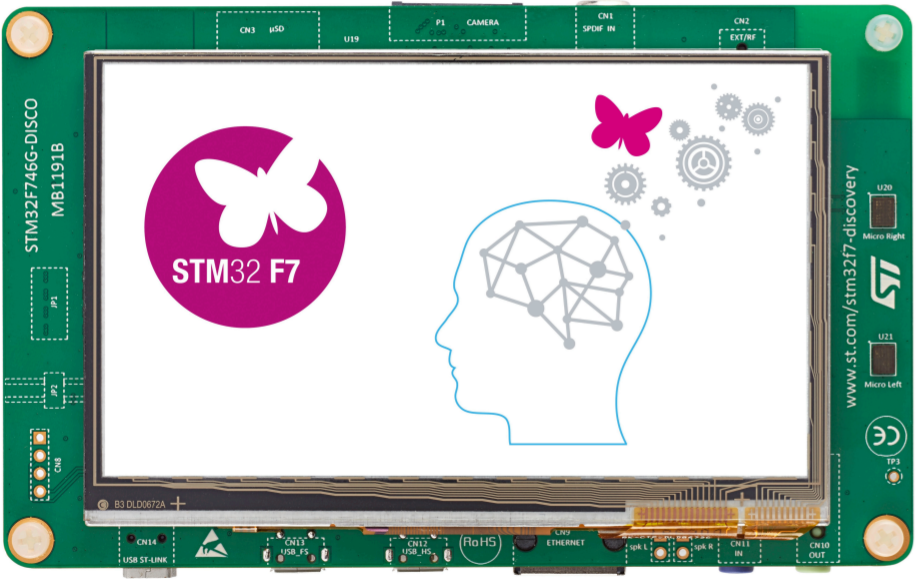

• 4.3” RGB 480×272 color LCD-TFT with capacitive touch screen
• Ethernet compliant with IEEE-802.3-2002
• USB OTG HS
• USB OTG FS
• SAI audio codec
• Two ST-MEMS digital microphones
• 128-Mbit Quad-SPI Flash memory
• 128-Mbit SDRAM (64 Mbits accessible)
• Two user and reset push-buttons

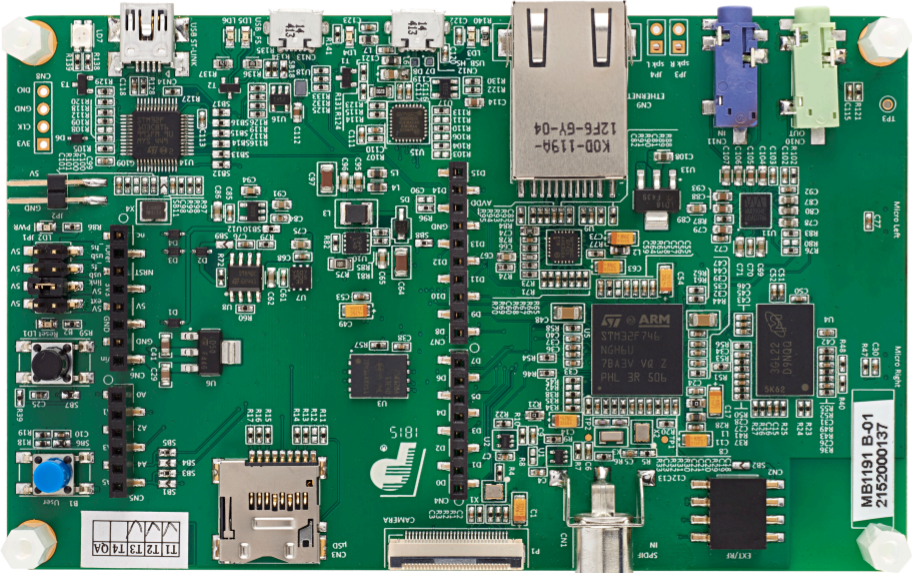

• Board connectors:
– Camera
– microSD™ card
– RF-EEPROM daughterboard connector
– 2×USB with Micro-AB
– Ethernet RJ45
– SPDIF RCA input connector
– Audio line in and line out jack
– Stereo speaker outputs
– ARDUINO® Uno V3 expansion connectors
